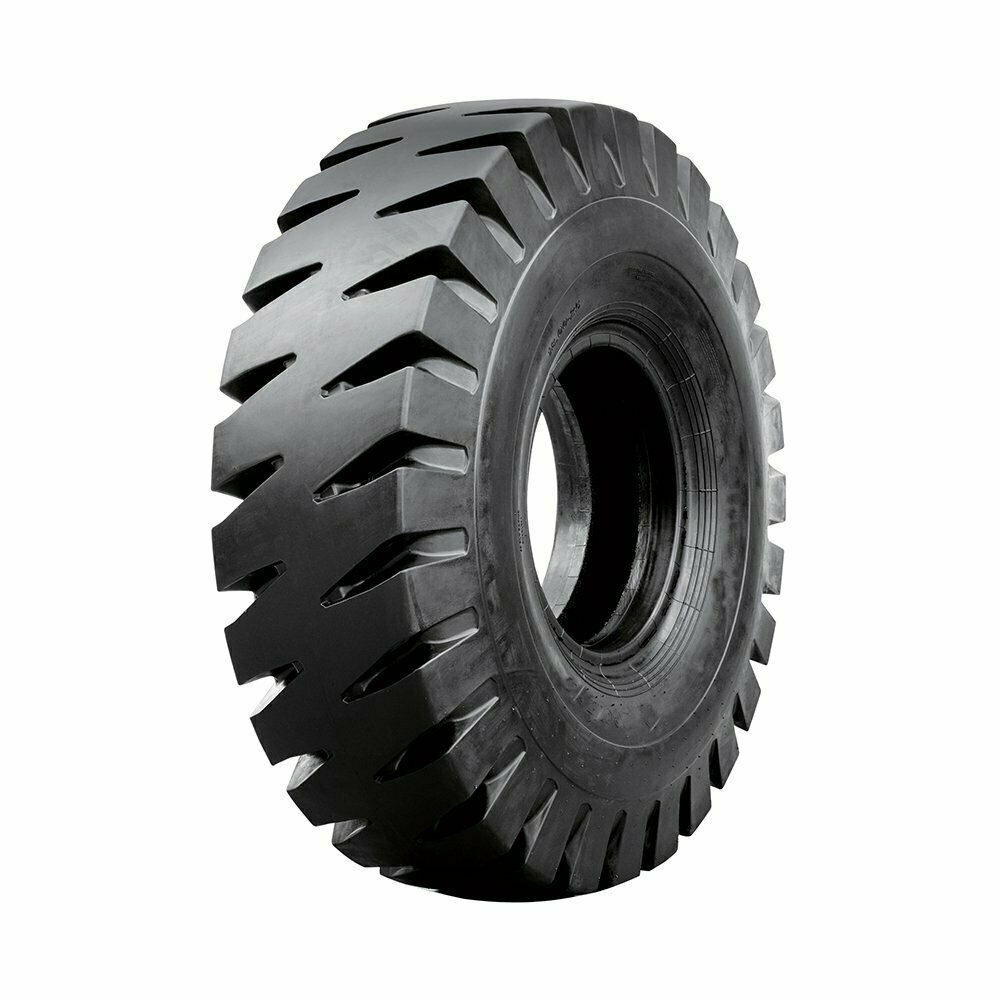

E-4A
> Special construction design for high torque and heavy load service.
> specially formulated heat,cut & abrasion resistant compund provides optimum wear.
> Strong carcass and extra deep tread provides longer tire life.
> Applications:Handling&Towing Equipments
Specifications:
| SIZE | PR | PATTERNNO. | TYPE | TREAD DEPTH (mm) | STD.RIM | (INFLATION PRESSURE)(kPa) | LOAD CAPACITY AT VARIOUS SPEED (kg) | S.W.(mm) | O.D.(mm) | |||||||
| 0km/h | Creep | 5km/h | 10km/h | 15km/h | 20km/h | 25km/h | 30km/h | |||||||||
| 18.00-33 | 40 | E-4A | TL | 69 | 13.00/2.5 | 1150 | 35600 | 31670 | 28700 | 26700 | 25710 | 25120 | 24700 | 24500 | 509 | 1860 |
| 18.00-25 | 40 | E-4A | TL | 68 | 13.00/2.5 | 1150 | 30600 | 27200 | 24650 | 22950 | 22100 | 21590 | 21250 | 21080 | 528 | 1684 |
