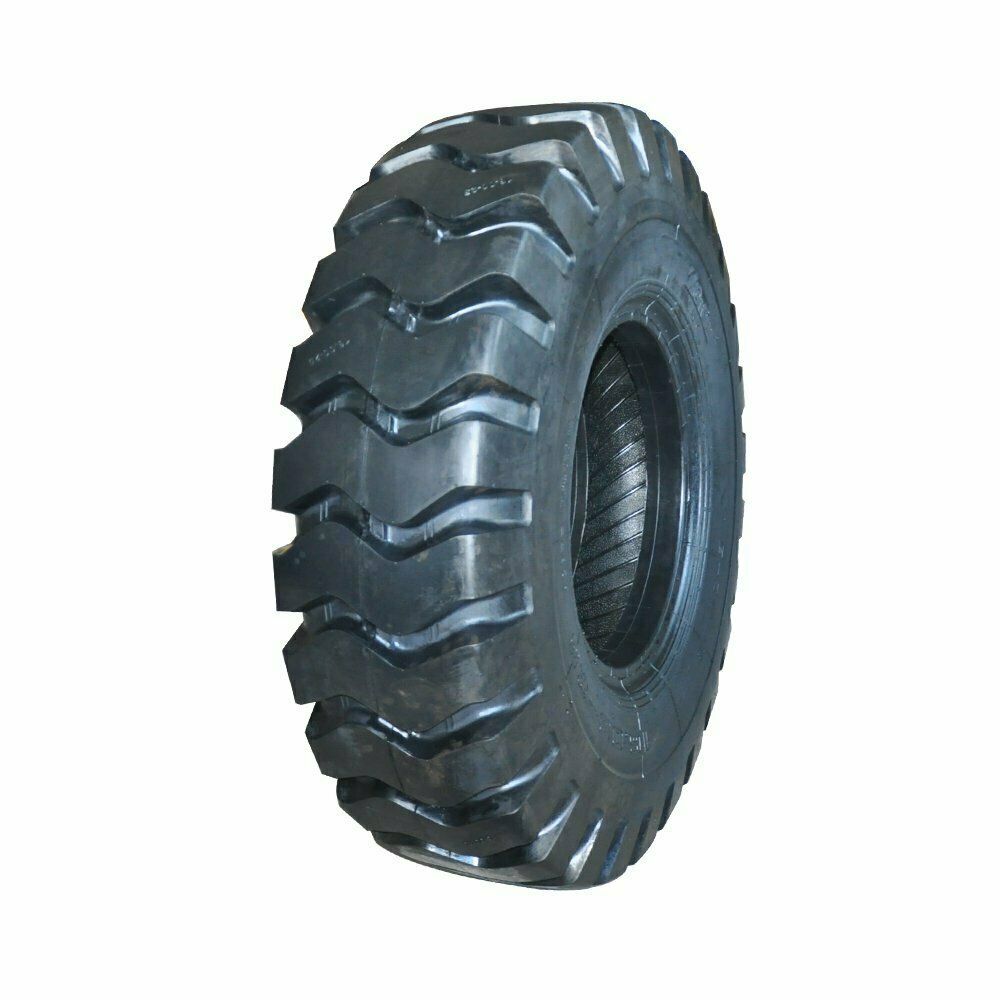

E-3/L-3
> Special construction design for high torque and heavy load service.
> specially formulated heat,cut & abrasion resistant compund provides optimum wear.
> Strong carcass and extra deep tread provides longer tire life.
> Applications:Handling&Towing Equipments
Specifications:
| SIZE | PR | PATTERNNO. | TYPE | TREADDEPTH(mm) | STD.RIM | (INFLATIONPRESSURE)(kPa) | LOAD CAPACITY AT VARIOUS SPEED (kg) | S.W.(mm) | O.D.(mm) | |||||||
| 0km/h | Creep | 5km/h | 10km/h | 15km/h | 20km/h | 25km/h | 30km/h | |||||||||
| 16.00-25 | 36 | E-3/L-3 | TL | 36 | 11.25-2.0 | 1150 | 24500 | 21800 | 19700 | 18400 | 17700 | 17300 | 17000 | 16350 | 430 | 1495 |
